SPECIFICATION

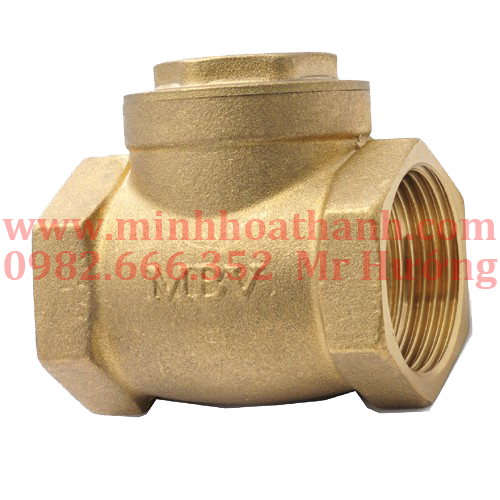

Brass swing check valve, With Brass seat, Screwed ends.
BS Standard
Max. working pressure: 10 Bar
Max. working temperature: 120oC
DIMENSION
| Valve size |
1/2
15 |
3/4
20 |
1
25 |
1.1/4
32 |
1.1/2
40 |
2
50 |
2.1/2
65 |
3
80 |
4
100 |
| ØA (mm) |
13 |
17 |
23 |
28 |
32 |
44 |
56 |
66 |
86 |
| B (mm) |
40 |
45.5 |
54 |
66 |
75 |
88 |
102 |
122 |
134 |
| C (mm) |
9 |
9 |
10.5 |
12 |
13.5 |
14 |
16 |
18 |
20 |
| Sw (mm) |
24.5 |
30 |
37 |
47 |
53 |
65 |
83 |
94 |
122 |
| Weight (gg) |
95 |
130 |
205 |
350 |
460 |
770 |
1220 |
1810 |
3200 |
| Pcs / box |
12 |
10 |
8 |
6 |
4 |
2 |
2 |
1 |
1 |
